◆ Touch your finger on finger sensor.
◆ If your finger match with stored database, it will glow with blue color and unlock the door.
◆ If your finger didn’t match with stored database, it will glow with red color
◆ user can program different fingers for different doors

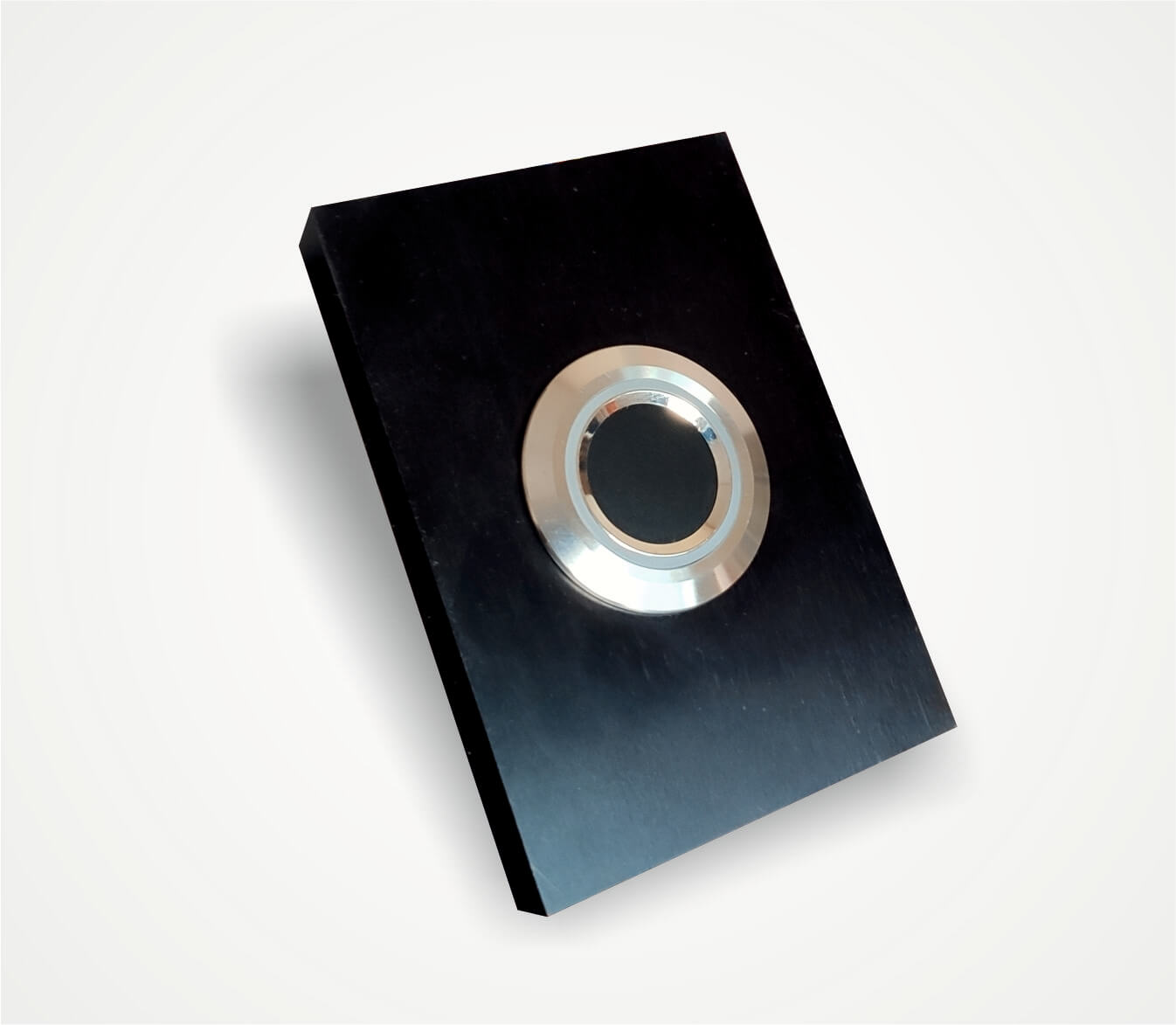

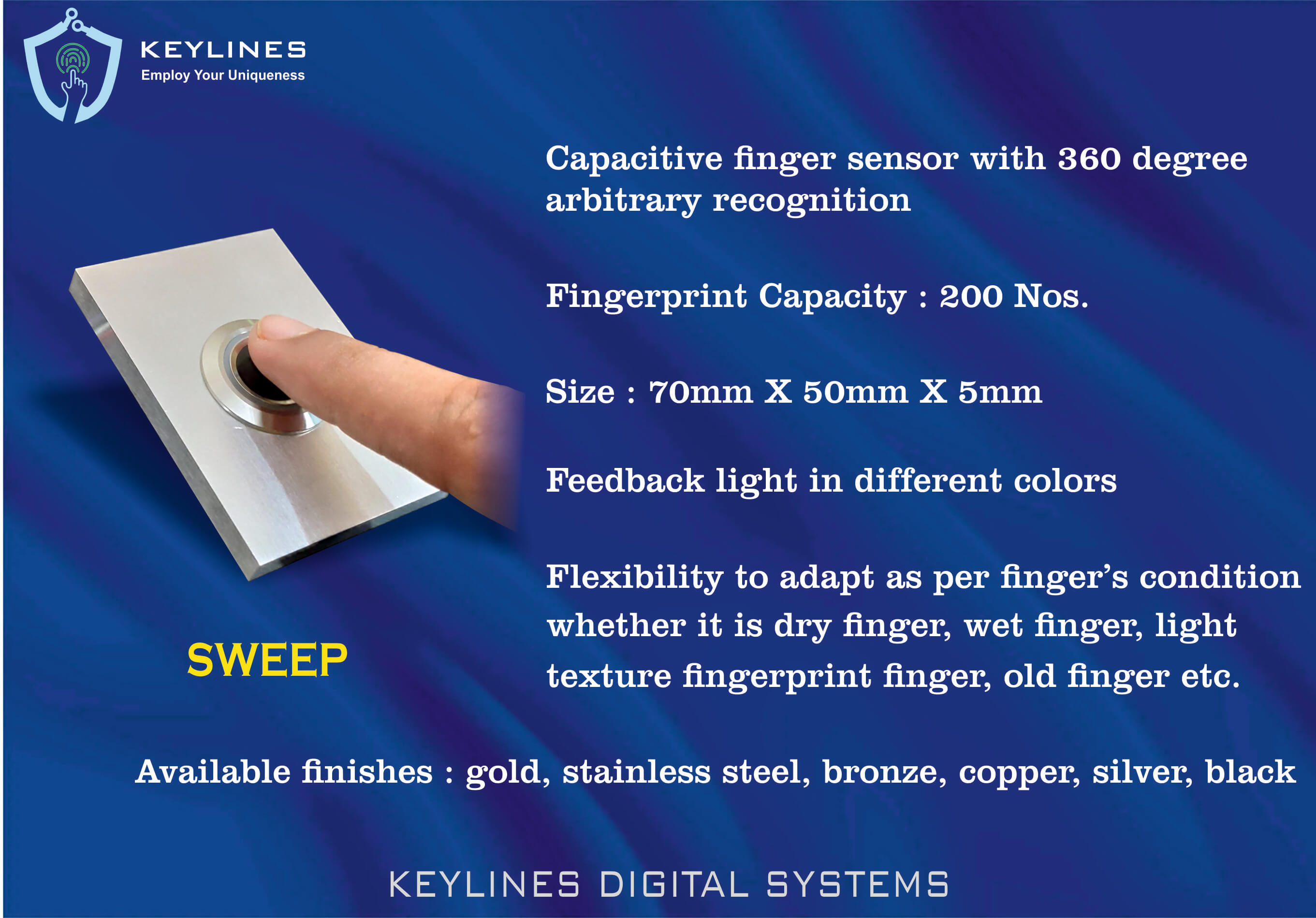

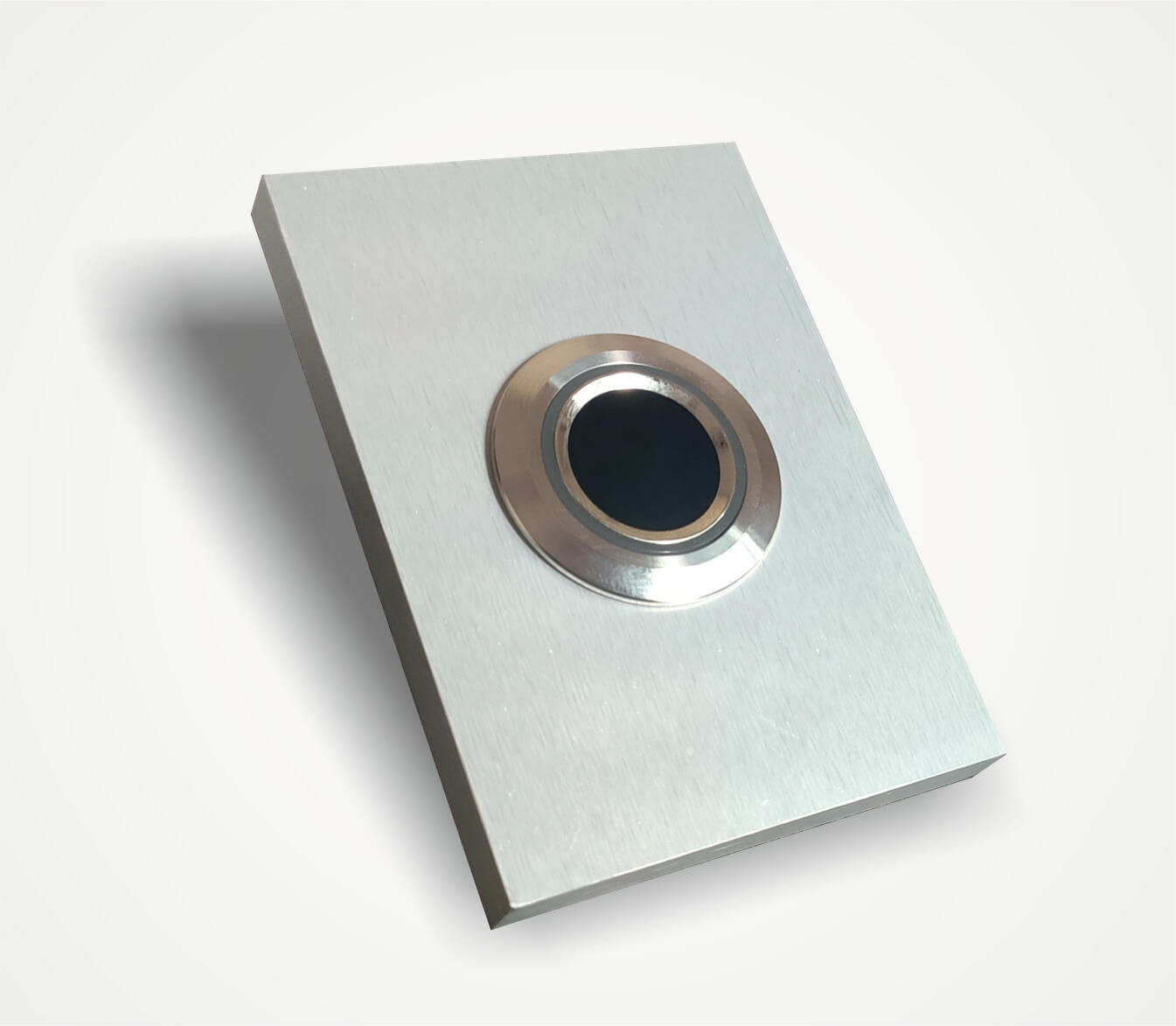

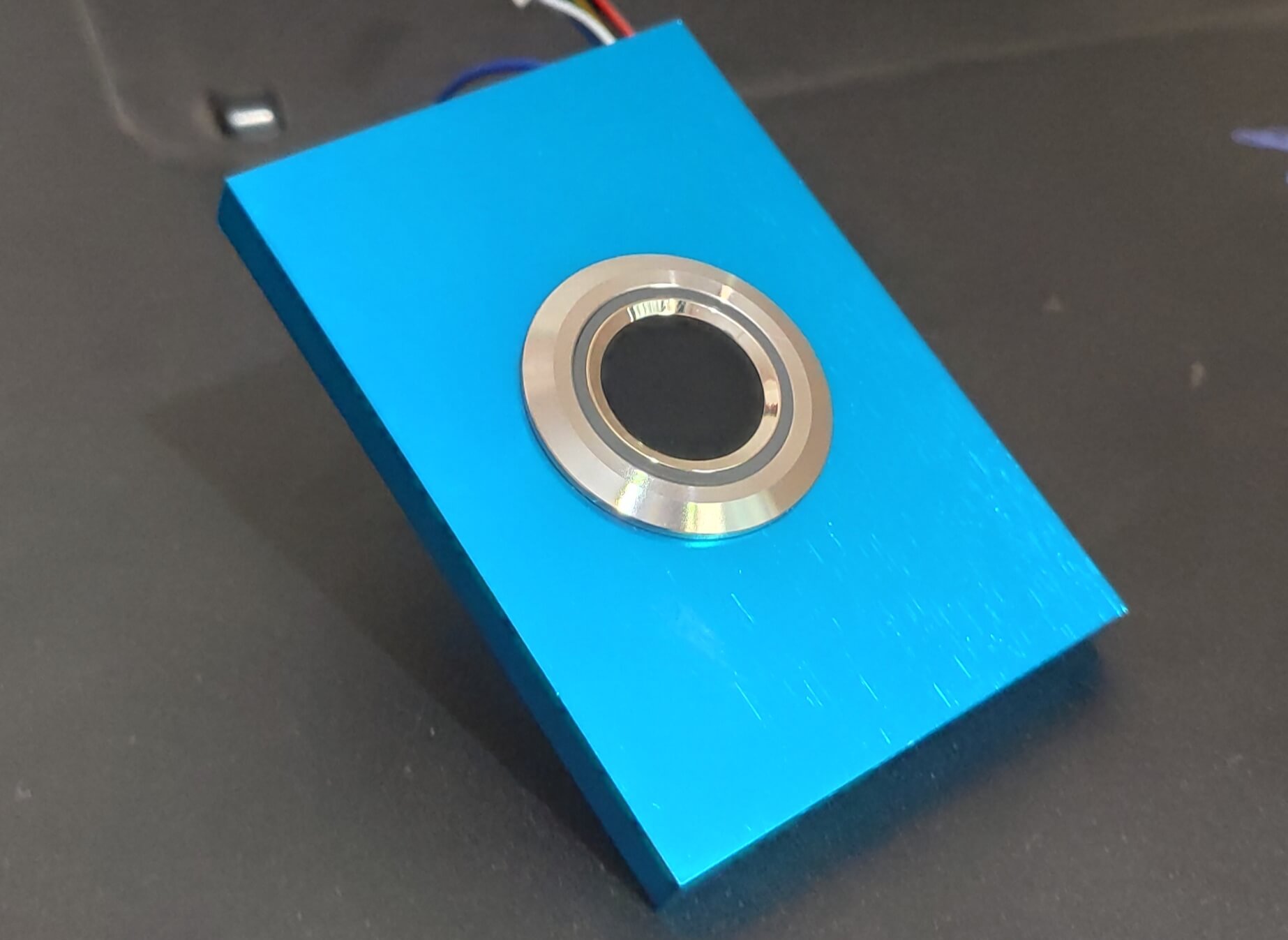

◆ Front plate size : (H X W X D) 70mm X 50mm X 5mm
◆ Resolution:508 DPI
◆ Working current(Fingerprint acquisition):20mA
◆Standby current(finger detection): Typical touch standby voltage: 3.3V, Average current: 2uA
◆ Fingerprint capacity:200
◆Sensing Array:192*192 pixel
◆ Fingerprint module external size: diameter 28mm
◆ Fingerprint module inner size: diameter 23.5mm
◆ Effective collection area: diameter 15mm
◆ LED Color: Bule and Red
◆ ScanningSpeed:< 0.2 second
◆ Verification Speed:< 0.3 second
◆ Matching Method:1:1; 1:N
◆ FRR (False Rejection Ratio):≤0.01%
◆ FAR (False Acceptance Ratio):≤0.00001%
◆ Antistatic capacity:15KV
◆ Abrasive resistance intensity:1 million times
◆ Peak power consumption:60 mA
◆ Work environment:-20°C ---55°C
◆ Work Humidity:0-90%
