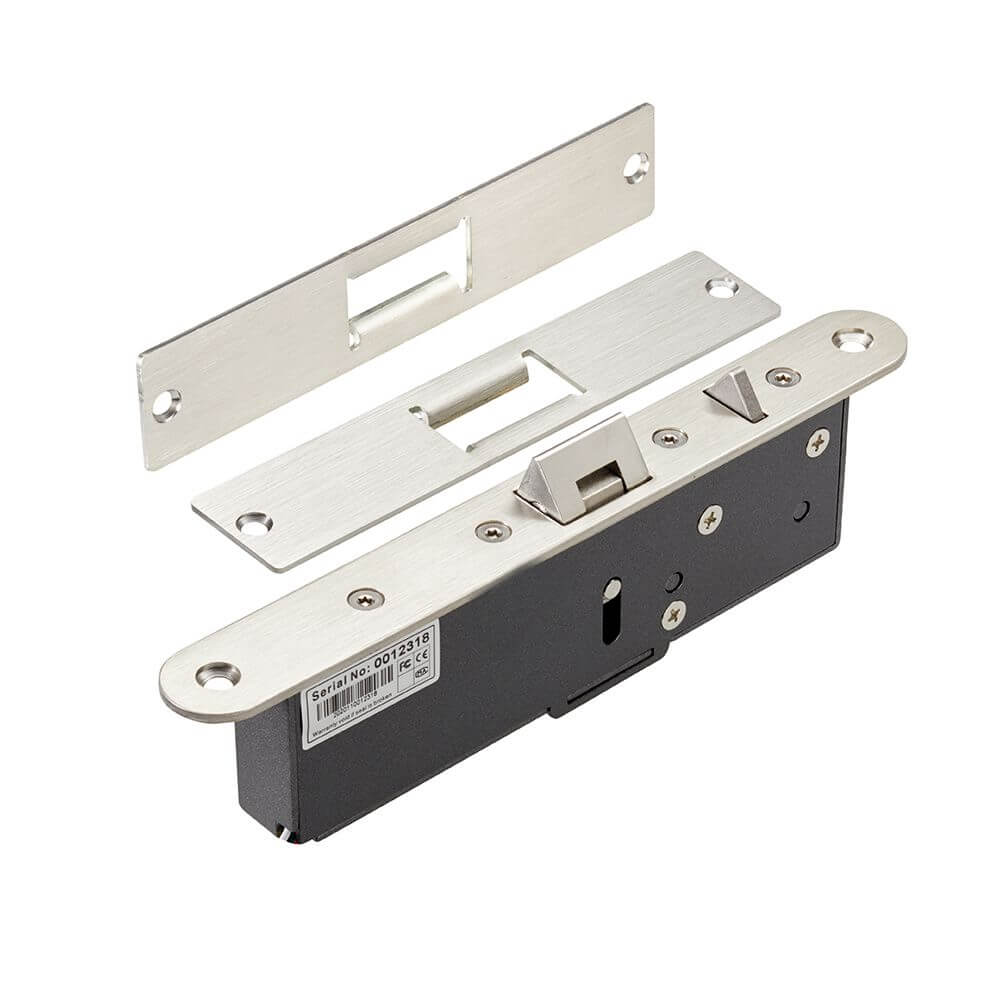

◆ Suitable for two side openable swing door
◆ Manual key override
◆ Feature: Fail Safe/Fail Secure(Adjustable)
◆ Face Plate: 210Lx25Wx51.9H
◆ Strike: 150Lx30Wx1.5H
◆ Magnetic Valve: 1000000 times
◆ Voltage: 12~24VDC/AC
◆ Signal output: Lock signal(NO/NC/COM)
◆ Current: ≤300mA
◆ Signal Output: NO/COM/NO contact,only when achieve locking and door closing,signal output will switch
◆ IP rate: IP-65
◆ Operating temp: (-20℃~+50℃)
◆ Weight: 0.71kg
