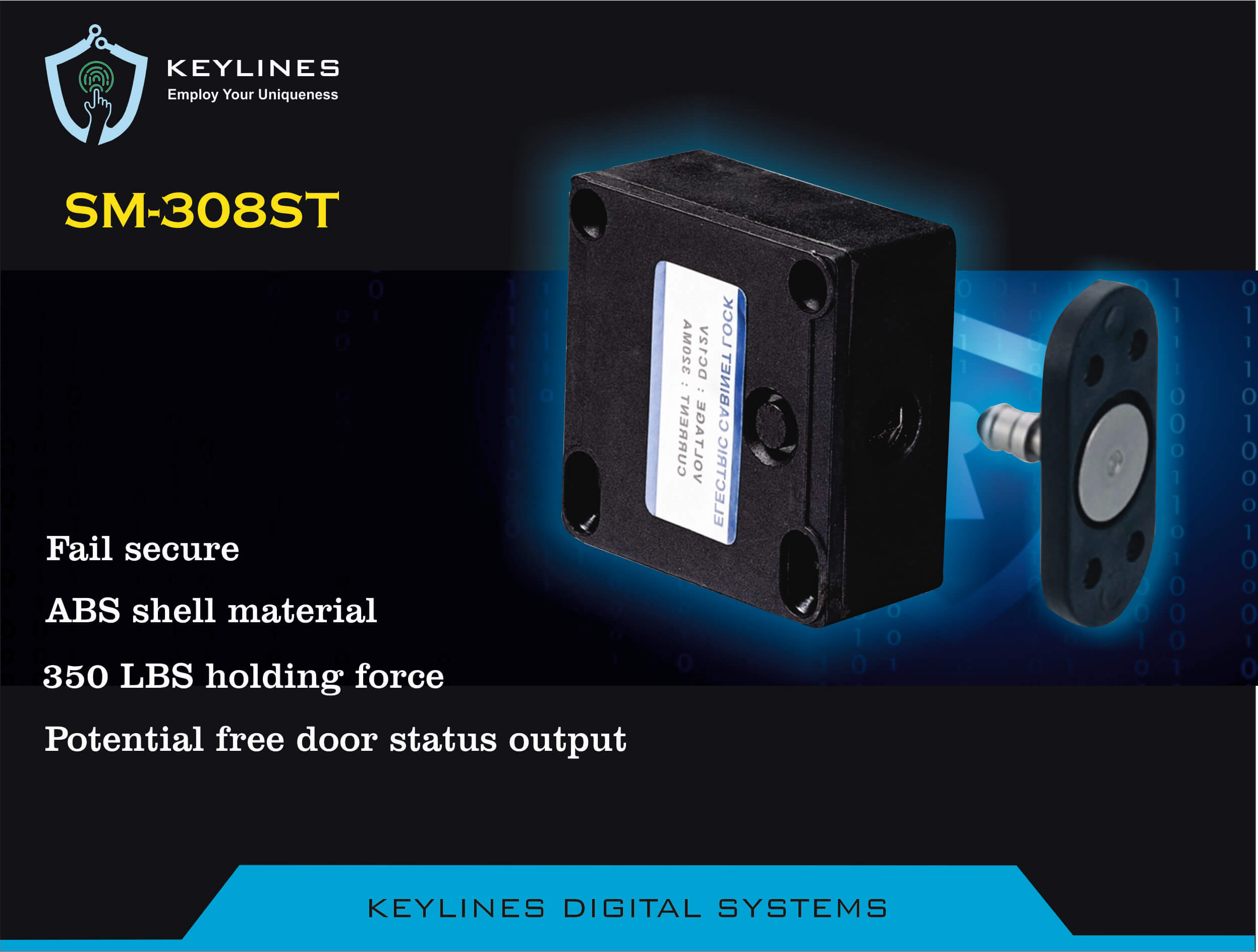

◆ Fail secure
◆ ABS Shell material
◆ 350 LBS holding force
◆ Potential free door status output
◆ Version: Fail locked(the bolt is locked when the current is off)
◆ Diameter dead bolt: ø7mm,18mm
◆ Shear strength: 350Lbs
◆ Rated Operating Voltage: DC 12V or 24V (Customization Available)
◆ Standby Current: 320mA
◆ Optional Functions: Door Status Sensors
◆ Face place material: ABS,Stainless steel
◆ Surface Temp: Low Temperature
◆ Ambient temperature in °C: -10°C - +55°C

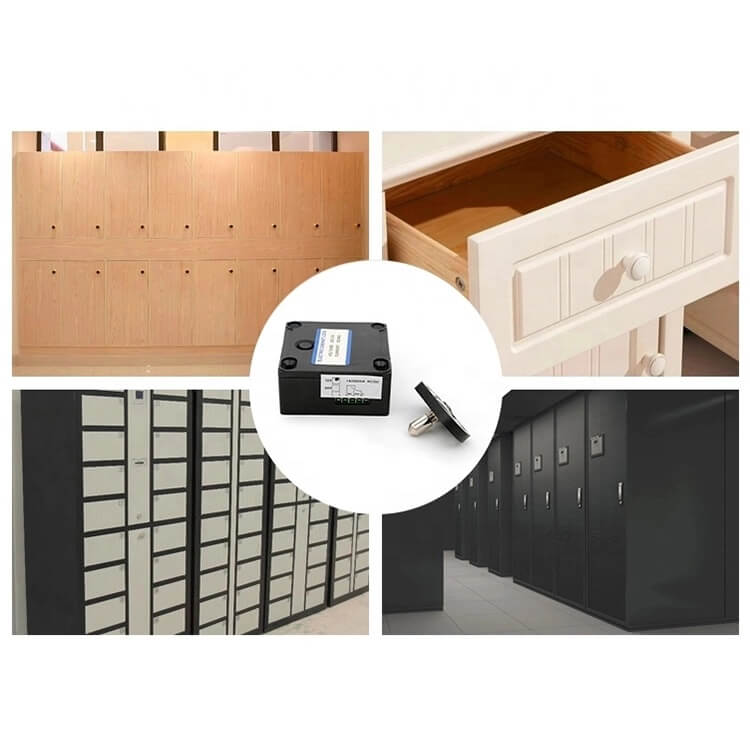

◆ Suitable for: Secure lcoking of furniture (Wooden & Aluminum& Metal Furniture frame)
◆ Dimensions(L x W x H): 55mmL×55mmW×25mmH
◆ Weight in kg: 0.12kg
◆ CE-mark for building: YES
◆ Rohs-mark for building: YES
